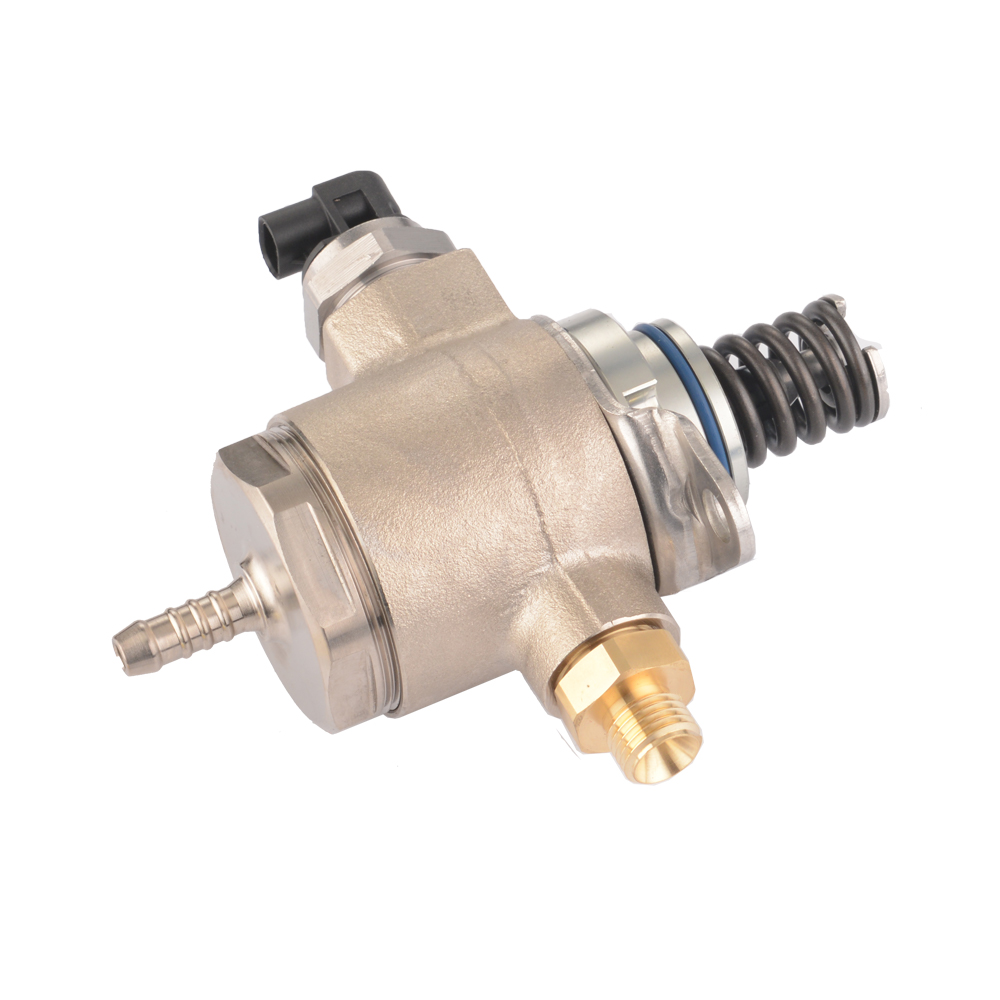

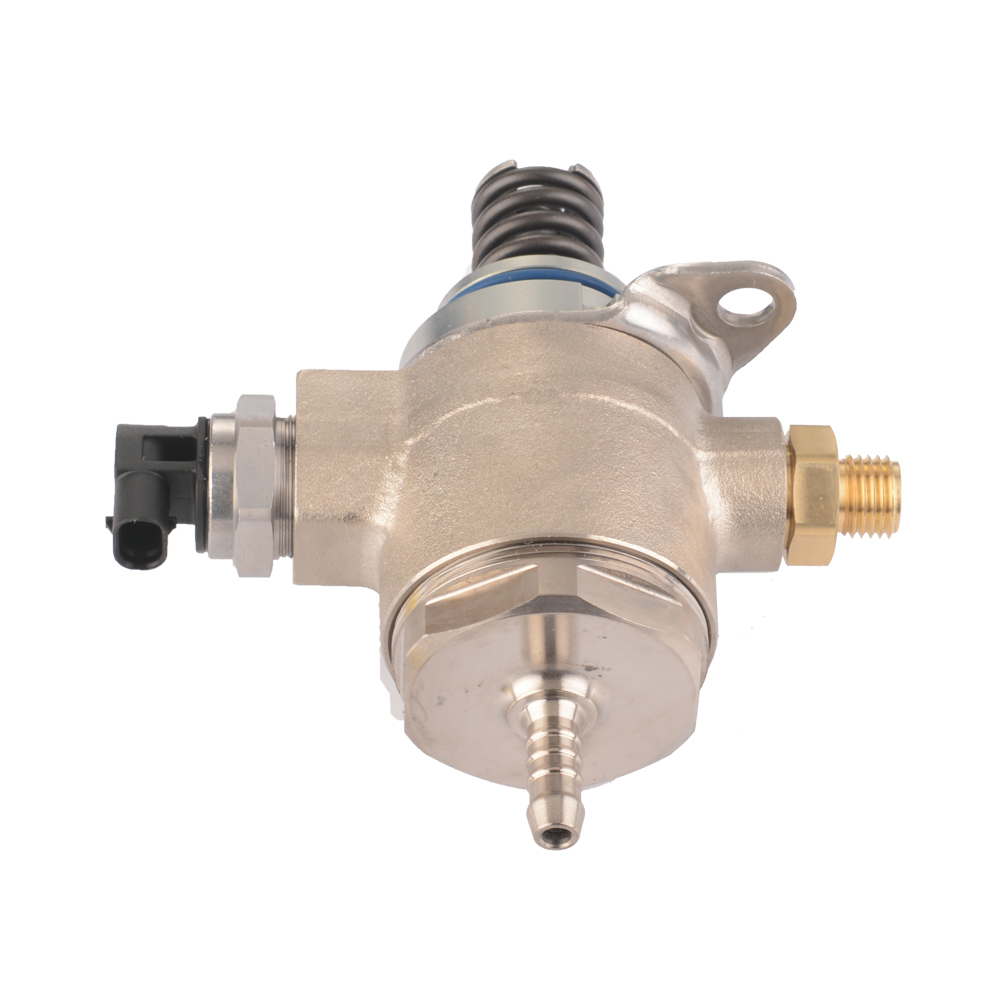

This high-pressure pump is used for your direct-injected vehicle. They will usually fail when the camshaft follower wears through and destroys the pump shaft or they can’t put out the proper pressure after it has aged. When replacing the pump, make sure to also replace the cam follower as this is most likely worn or destroyed as well.
* This part is designed for the TSI engine only. This can easily be found on the engine cover of your 2.0T VW/Audi. It will clearly be stamped TSI or TFSI.
| Car Model | OE Ref. | OEM Sup. Code | Car Model |
|---|---|---|---|
| VW/Audi | 06J 127 025 J 06J 127 025 G 06J 127 025 E 06J 127 025 F | HITACHI HFS034-A135C | Audi A4 (8K2, B8) 2.0 TFSI / 2.0 TFSI Quattro 2008-2015 Audi A4 Avant (8K5, B8) 2.0 TFSI / 2.0 TFSI Quattro 2008-2012 Audi A4 Allroad (8KH, B8) 2.0 TFSI Quattro 2009-2016 Audi A5 (8T3) 2.0 TFSI 2008-2013 / 2.0 TFSI Quattro 2008-2017 Audi A5 Sportback (8TA) 2.0 TFSI 2009-2014 / 2.0 TFSI Quattro 2009-2017 Audi A5 Convertible (8F7) 2.0 TFSI 2009-2014 / 2.0 TFSI Quattro 2009-2017 Audi A6 (4G2, 4GC, C7) 2.0 TFSI 2011-2018 / 2.0 TFSI Quattro 2012-2013 / 2.0 TFSI Hybrid 2011-2018 Audi A6 Avant (4G5, 4GD, C7) 2.0 TFSI 2011-2018 Audi A8 (4H2, 4H8, 4HC, 4HL) 2.0 TFSI Hybrid 2012-2015 Audi Q3 (8UB, 8UG) 2.0 TFSI Quattro 2011-2015 Audi Q5 (8RB) 2.0 TFSI Quattro 2008-2017 / 2.0 TFSI Hybrid Quattro 2011-2016 Audi TT (8J3) 2.0 TFSI 2010-2014 / 2.0 TFSI Quattro 2008-2014 Audi TT Roadster (8J9) 2.0 TFSI 2010-2014 / 2.0 TFSI Quattro 2008-2014 VW Passat (362) 2.0 TSI 2010-2014 VW Passat Variant (365) 2.0 TSI 2010-2015 / Alltrack 2.0 TSI 4 Motion 2012-2014 VW Passat CC (357) 2.0 TSI 2010-2012 VW CC (358) 2.0 TSI 2011-2016 VW Magotan (362) 2.0 TSI 2010-2014 VW Golf VI (5K1) 2.0 GTI 2009-2012 VW Golf VI Variant (AJ5) 2.0 TSI 2009-2013 VW Golf VI Convertible (517) 2.0 GTI 2012-2016 VW Amarok (2HA, 2HB, S1B, S6B, S7A, S7B) 2.0 TSI 2010- VW Beetle (5C1, 5C2) 2.0 TSI 2011-2016 VW Beetle Convertible (5C7, 5C8) 2.0 TSI 2011-2016 VW Scirocco (137, 138) 2.0 TSI 2009-2017 VW Tiguan (5N_) 2.0 TSI 4 Motion 2011-2018 / 2.0 TFSI 4 Motion 2007-2018 VW Sharan (7N1, 7N2) 2.0 TSI 2010- VW Jetta IV (163, 162, AV3, AV2) 2.0 TSI 2010- VW Eos (1F7, 1F8) 2.0 TSI 2009-2015 / 2.0 TFSI 2006-2015 VW Multivan T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.0 TSI / 2.0 TSI 4 Motion 2011-2015 VW Multivan T6 (SGF, SGM, SGN) 2.0 TSI / 2.0 TSI 4 Motion 2015- VW Transporter T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC) 2.0 TSI / 2.0 TSI 4 Motion 2011-2015 VW Transporter T5 Box (7HA, 7HH, 7EA, 7EH) 2.0 TSI / 2.0 TSI 4 Motion 2011-2015 VW Transporter T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F) 2.0 TSI 2012-2015 VW Transporter T6 Bus (SGB, SGG, SGJ, SGC, SGH) 2.0 TSI / 2.0 TSI 4 Motion 2015- VW Transporter T6 Box (SGA, SGH) 2.0 TSI / 2.0 TSI 4 Motion 2015- VW Transporter T6 Platform/Chassis (SFD, SFE, SFL, SFZ) 2.0 TSI 2015- SEAT Alhambra (710, 711) 2.0 TSI 2010- SEAT Altea XL (5P5, 5P8) 2.0 TFSI 4x4 2009- SEAT EXEO (3R2) 2.0 TFSI 2010- SEAT EXEO ST (3R5) 2.0 TFSI 2010- SEAT LEON (1P1) 2.0 TFSI 2009-2012 Sokda Octavia II (1Z3) 2.0 RS 2005-2013 Sokda Octavia II Combi (1Z5) 2.0 RS 2005-2013 Sokda SuperB II (3T4) 2.0 TSI 2010-2015 Sokda SuperB II Estate (3T5) 2.0 TSI 2010-2015 |
